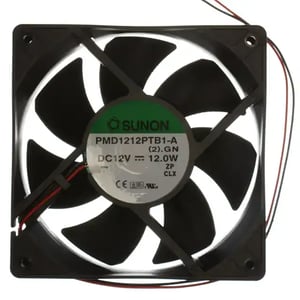

Part Image
Image is for Reference Only

PMD1212PTB1-A.(2).GN

Manufacturer
SUNON
Mfr. Part #
PMD1212PTB1-A.(2).GN
Category
DC Fans
SKU
PMD1212PTB1-A.(2).GN
Description
Fan Tubeaxial 12VDC Square - 120mm L x 120mm H Ball 150.0 CFM (4.20m³/min) 2 Wire Leads
Stock Info
Available : 6978
Std Package Qty
1
View All DC Fans by SUNON
Truspilot
Trustpilot Stars  4.9
Available Quantity : 6978
100% Purchase Protection
Original Products | Secure Payments

Specifications

Air Flow150.0 CFM (4.20m³/min)
Approval AgencyCE, CUR, TUV, UL
Bearing TypeBall
Current Rating (Amps)1A
Fan TypeTubeaxial
Features-
Ingress Protection-
Lifetime @ Temp.-
Material - BladePolybutylene Terephthalate (PBT)
Material - FramePolybutylene Terephthalate (PBT)
Noise54.0dB(A)
Operating Temperature14 ~ 158°F (-10 ~ 70°C)
PackageBox
Power (Watts)12W
Rohs StatusROHS3 Compliant
Rpm4500 RPM
SeriesPMD
Size / DimensionSquare - 120mm L x 120mm H
Standard Package1
Static Pressure0.620 in H2O (154.4 Pa)
Termination2 Wire Leads
Voltage - Rated12VDC
Voltage Range6 ~ 13.8VDC
Weight0.485 lb (219.99 g)
Width25.00mm
