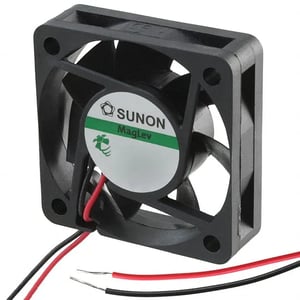

Image is for Reference Only
MB50151V1-000U-A99
Manufacturer
Mfr. Part #
MB50151V1-000U-A99
Category
SKU
MB50151V1-000U-A99
Description
Fan Tubeaxial 12VDC Square - 50mm L x 50mm H Vapo-Bearing™ 17.0 CFM (0.476m³/min) 2 Wire Leads
Stock Info
Available : 5266
Packaging
Bulk Pack
Std Package Qty
30
View All DC Fans by SUNON
Specifications
| Air Flow | 17.0 CFM (0.476m³/min) |
| Approval Agency | CE, CUR, TUV, UL |
| Bearing Type | Vapo-Bearing™ |
| Current Rating (Amps) | 0.087A |
| Fan Type | Tubeaxial |
| Features | Auto Restart |
| Ingress Protection | - |
| Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Polybutylene Terephthalate (PBT) |
| Noise | 33.0dB(A) |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Package | Bulk |
| Power (Watts) | 1.05W |
| Product Status | Obsolete |
| Rohs Status | ROHS3 Compliant |
| Rpm | 5800 RPM |
| Series | MagLev® MB |
| Size / Dimension | Square - 50mm L x 50mm H |
| Standard Package | 30 |
| Static Pressure | 0.230 in H2O (57.3 Pa) |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12VDC |
| Voltage Range | 4.5 ~ 13.8VDC |
| Weight | 0.085 lb (38.56 g) |
| Width | 15.00mm |
| Datasheet |
