BRD1265C-TL

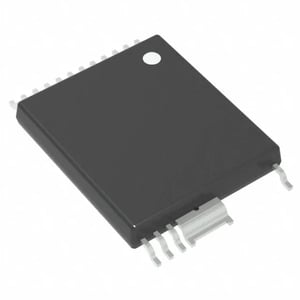

Image is for Reference Only
Manufacturer
Mfr. Part #
BRD1265C-TL
Category
SKU
BRD1265C-TL
Description
Half Bridge Driver DC Motors, General Purpose 24-PowerSMD Module , 17L
Quantity
Packaging
Reel
Specifications
| Applications | DC Motors, General Purpose |
| Current - Output / Channel | 5.5A |
| Current - Peak Output | - |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Features | Bootstrap Circuit |
| Interface | Analog, Logic, PWM |
| Load Type | Capacitive and Resistive |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge |
| Package | Tape & Reel (TR) |
| Package / Case | 24-PowerSMD Module , 17L |
| Product Status | Active |
| Rds On (Typ) | 830mOhm LS, 830mOhm HS |
| Rohs Status | RoHS Compliant |
| Series | BridgeSwitch |
| Standard Package | 2,000 |
| Technology | Power MOSFET |
| Voltage - Load | 600V |
| Voltage - Supply | - |
| Datasheet |
