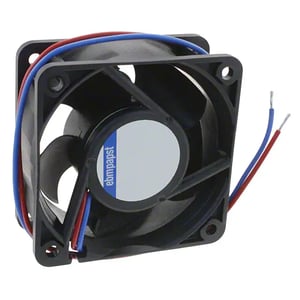

Image is for Reference Only
622HH
Manufacturer
Mfr. Part #
622HH
Category
SKU
622HH
Description
Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 33.0 CFM (0.924m³/min) 2 Wire Leads
Stock Info
Available : 7458
Packaging
Bulk Pack
Std Package Qty
30
View All DC Fans by ebm-papst
Specifications
| Air Flow | 33.0 CFM (0.924m³/min) |
| Approval Agency | CE, CSA, UL, VDE |
| Bearing Type | Ball |
| Current Rating (Amps) | - |
| Fan Type | Tubeaxial |
| Features | - |
| Ingress Protection | - |
| Lifetime @ Temp. | 65000 Hrs @ 40°C |
| Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Noise | 43.0dB(A) |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Package | Bulk |
| Power (Watts) | 3.5W |
| Rohs Status | ROHS3 Compliant |
| Rpm | 8200 RPM |
| Series | 620 |
| Size / Dimension | Square - 60mm L x 60mm H |
| Standard Package | 30 |
| Static Pressure | - |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12VDC |
| Voltage Range | 8 ~ 15VDC |
| Weight | 0.187 lb (84.82 g) |
| Width | 25.40mm |
