EFB1524SHG
Manufacturer
Mfr. Part #
EFB1524SHG
Category
SKU
EFB1524SHG
Description

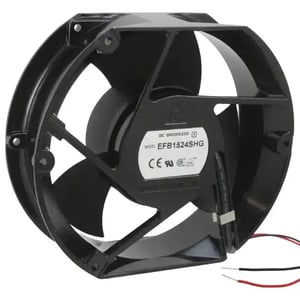

Fan Tubeaxial 24VDC Rectangular/Rounded - 172mm L x 150mm H Ball 325.0 CFM (9.10m³/min) 2 Wire Leads
Stock Info
Available : 7484
Packaging
Bulk Pack
Std Package Qty
8
View All DC Fans by Delta Elec.
Specifications
| Air Flow | 325.0 CFM (9.10m³/min) |
| Approval Agency | CE, CSA, UL, VDE |
| Bearing Type | Ball |
| Current Rating (Amps) | 1.17A |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection |
| Ingress Protection | - |
| Lifetime @ Temp. | 80000 Hrs @ 40°C |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Noise | 63.0dB(A) |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Package | Bulk |
| Power (Watts) | 28.08W |
| Rohs Status | ROHS3 Compliant |
| Rpm | 4300 RPM |
| Series | EFB |
| Size / Dimension | Rectangular/Rounded - 172mm L x 150mm H |
| Standard Package | 8 |
| Static Pressure | 1.083 in H2O (269.8 Pa) |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24VDC |
| Voltage Range | 12 ~ 28VDC |
| Weight | 1.9 lbs (861.8 g) |
| Width | 50.80mm |
