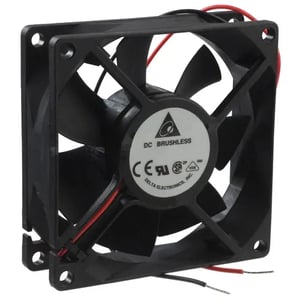

Image is for Reference Only
AFB0824SH
Manufacturer
Mfr. Part #
AFB0824SH
Category
SKU
AFB0824SH
Description
Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Ball 46.6 CFM (1.30m³/min) 2 Wire Leads
Stock Info
Available : 8674
Packaging
Bag
Std Package Qty
135
View All DC Fans by Delta Elec.
Specifications
| Air Flow | 46.6 CFM (1.30m³/min) |
| Approval Agency | CE, CSA, UL, VDE |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.160A |
| Fan Type | Tubeaxial |
| Features | - |
| Ingress Protection | - |
| Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Manufacturer Part Number | AFB0824SH |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 40.0 dB(A) |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Power (Watts) | 3.84W |
| Rohs Status | ROHS3 Compliant |
| Rpm | 4000 RPM |
| Series | AFB |
| Size / Dimension | Square - 80mm L x 80mm H |
| Standard Package | 135 |
| Static Pressure | 0.267 in H2O (66.5 Pa) |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24VDC |
| Voltage Range | 14 ~ 26VDC |
| Weight | 0.176 lb (79.83 g) |
| Width | 25.40mm |
| Datasheet |
