AFB04512MA
Manufacturer
Mfr. Part #
AFB04512MA
Category
SKU
AFB04512MA
Description

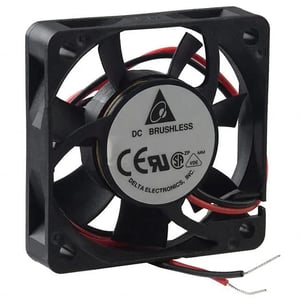

Fan Tubeaxial 12VDC Square - 45mm L x 45mm H Ball 9.9 CFM (0.277m³/min) 2 Wire Leads
Stock Info
Available : 5918
Std Package Qty
504
View All DC Fans by Delta Elec.
Specifications
| Air Flow | 9.9 CFM (0.277m³/min) |
| Approval Agency | CE, CSA, UL, VDE |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.110A |
| Fan Type | Tubeaxial |
| Features | - |
| Ingress Protection | - |
| Lifetime @ Temp. | - |
| Manufacturer Part Number | AFB04512MA |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 30.0 dB(A) |
| Operating Temperature | - |
| Power (Watts) | 1.32W |
| Rohs Status | ROHS3 Compliant |
| Rpm | 5000 RPM |
| Series | AFB |
| Size / Dimension | Square - 45mm L x 45mm H |
| Standard Package | 504 |
| Static Pressure | 0.127 in H2O (31.6 Pa) |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12VDC |
| Voltage Range | 7 ~ 13.8VDC |
| Weight | 0.034 lb (15.42 g) |
| Width | 10.00mm |
| Datasheet |
