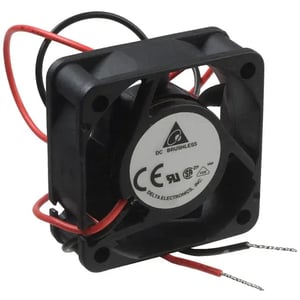

Image is for Reference Only
AFB0424SHB
Manufacturer
Mfr. Part #
AFB0424SHB
Category
SKU
AFB0424SHB
Description
Fan Tubeaxial 24VDC Square - 40mm L x 40mm H Ball 14.8 CFM (0.414m³/min) 2 Wire Leads
Stock Info
Available : 6170
Packaging
Bag
Std Package Qty
448
View All DC Fans by Delta Elec.
Specifications
| Air Flow | 14.8 CFM (0.414m³/min) |
| Approval Agency | CE, CSA, UL, VDE |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.120A |
| Fan Type | Tubeaxial |
| Features | - |
| Ingress Protection | - |
| Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Manufacturer Part Number | AFB0424SHB |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 41.5 dB(A) |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Power (Watts) | 2.88W |
| Rohs Status | ROHS3 Compliant |
| Rpm | 11000 RPM |
| Series | AFB |
| Size / Dimension | Square - 40mm L x 40mm H |
| Standard Package | 448 |
| Static Pressure | 0.601 in H2O (149.7 Pa) |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24VDC |
| Voltage Range | 14 ~ 27.6VDC |
| Weight | 0.055 lb (24.95 g) |
| Width | 15.00mm |
| Datasheet |
