HEDS-9100#C00

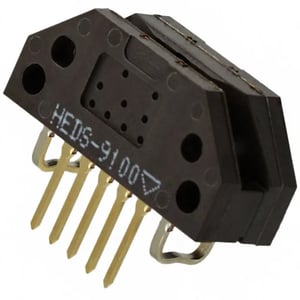

Image is for Reference Only
Manufacturer
Mfr. Part #
HEDS-9100#C00
Category
SKU
HEDS-9100#C00
Description
Rotary Encoder Optical 100 Quadrature (Incremental) Vertical
Quantity
Packaging
Tube
View All Encoders by Broadcom Limited
Specifications
| Actuator Type | Codewheel Not Included |
| Built In Switch | No |
| Detent | No |
| Encoder Type | Optical |
| Mounting Type | Chassis Mount |
| Orientation | Vertical |
| Output Type | Quadrature (Incremental) |
| Package | Tube |
| Product Status | Active |
| Pulses Per Revolution | 100 |
| Rohs Status | ROHS3 Compliant |
| Series | HEDS |
| Standard Package | 100 |
| Termination Style | Terminal Pins |
| Voltage - Supply | 5V |
| Datasheet |
