UCD7201PWP

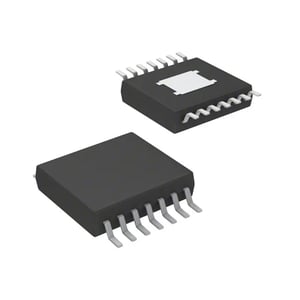

Image is for Reference Only
Manufacturer
Mfr. Part #
UCD7201PWP
Category
SKU
UCD7201PWP
Description
Low-Side Gate Driver IC Non-Inverting 14-PowerTSSOP
Quantity
View All Gate Drivers by Texas Instruments
Specifications
| Channel Type | Independent |
| Driven Configuration | Low-Side |
| Gate Type | N-Channel MOSFET |
| Input Type | Non-Inverting |
| Logic Voltage - Vil, Vih | 1.16V, 2.08V |
| Mounting Type | Surface Mount |
| Number Of Drivers | 2 |
| Operating Temperature | -40°C ~ 105°C (TJ) |
| Package | Tube |
| Package / Case | 14-PowerTSSOP |
| Rise / Fall Time (Typ) | 10ns, 10ns |
| Series | - |
| Standard Package | 90 |
| Voltage - Supply | 4.25V ~ 15V |
