TS5A23166YZTR

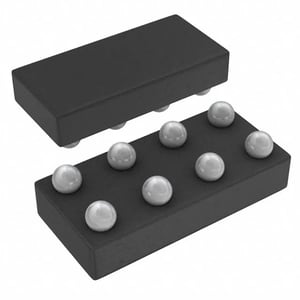

Image is for Reference Only
Manufacturer
Mfr. Part #
TS5A23166YZTR
SKU
TS5A23166YZTR
Description
2 Circuit IC Switch 8-UFBGA, DSBGA
Quantity
Specifications
| -3db Bandwidth | 150MHz |
| Channel Capacitance (Cs(off), Cd(off)) | 19pF, 18pF |
| Channel-to-channel Matching (?Ron) | 40mOhm |
| Charge Injection | 6pC |
| Crosstalk | -85dB @ 1MHz |
| Current - Leakage (Is(off)) (Max) | 20nA |
| Mounting Type | Surface Mount |
| Multiplexer/demultiplexer Circuit | 1:1 |
| Number Of Circuits | 2 |
| Off Time - Max | 7.5ns, 11ns |
| On Resistance - Max | 900mOhm |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | 8-UFBGA, DSBGA |
| Rohs Status | ROHS3 Compliant |
| Standard Package | 3,000 |
| Switch Circuit | SPST - NO |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
