SN74LVC823APWR

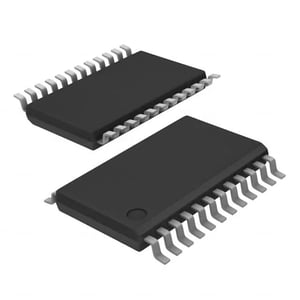

Image is for Reference Only
Manufacturer
Mfr. Part #
SN74LVC823APWR
Category
SKU
SN74LVC823APWR
Description
Flip Flop 1 Element 9 Bit Positive Edge 24-TSSOP
Quantity
Packaging
Reel
View All Flip-Flops by Texas Instruments
Specifications
| Clock Frequency | 150MHz |
| Current - Output High, Low | 24mA, 24mA |
| Current - Quiescent (Iq) | 10 µA |
| Function | Master Reset |
| Input Capacitance | 5 pF |
| Max Propagation Delay @ V, Max Cl | 8ns @ 3.3V, 50pF |
| Mounting Type | Surface Mount |
| Number Of Bits Per Element | 9 |
| Number Of Elements | 1 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Type | Tri-State, Non-Inverted |
| Package | Tape & Reel (TR) |
| Package / Case | 24-TSSOP |
| Product Status | Active |
| Rohs Status | ROHS3 Compliant |
| Series | 74LVC |
| Standard Package | 2,000 |
| Trigger Type | Positive Edge |
| Type | D-Type |
| Voltage - Supply | 1.65V ~ 3.6V |
| Datasheet |
