LM5045SQ/NOPB

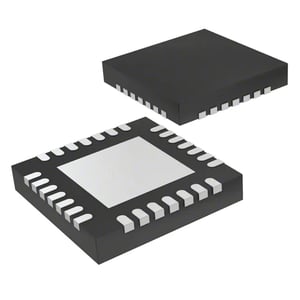

Image is for Reference Only
Manufacturer
Mfr. Part #
LM5045SQ/NOPB
SKU
LM5045SQ/NOPB
Description
Converter Offline Full-Bridge Up to 2MHz 28-WFQFN EP
Quantity
Packaging
Reel
Specifications
| Control Features | Frequency Control, Soft Start, Sync |
| Duty Cycle | - |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Frequency - Switching | Up to 2MHz |
| Internal Switch(s) | No |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Isolation | Isolated |
| Package | Tape & Reel (TR) |
| Package / Case | 28-WFQFN EP |
| Product Status | Active |
| Rohs Status | ROHS3 Compliant |
| Series | - |
| Standard Package | 1,000 |
| Topology | Full-Bridge |
| Voltage - Breakdown | - |
| Voltage - Supply (Vcc/vdd) | 14V ~ 100V |
| Datasheet |
