LM5033SDX/NOPB

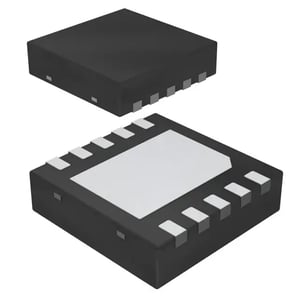

Image is for Reference Only
Manufacturer
Mfr. Part #
LM5033SDX/NOPB
Category
SKU
LM5033SDX/NOPB
Description
Full-Bridge, Half-Bridge, Push-Pull Regulator Positive Output Step-Up/Step-Down DC-DC Controller IC 10-WDFN EP
Quantity
Specifications
| Clock Sync | Yes |
| Control Features | Frequency Control, Soft Start |
| Frequency - Switching | 200kHz, 600kHz |
| Function | Step-Up/Step-Down |
| Mounting Type | Surface Mount |
| Number Of Outputs | 2 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Output Phases | 1 |
| Output Type | PWM Signal |
| Package / Case | 10-WDFN EP |
| Rohs Status | ROHS3 Compliant |
| Standard Package | 4,500 |
| Synchronous Rectifier | Yes |
| Topology | Full-Bridge, Half-Bridge, Push-Pull |
| Voltage - Supply (Vcc/vdd) | 15V ~ 90V |
| Datasheet |
