LM3633YFQR

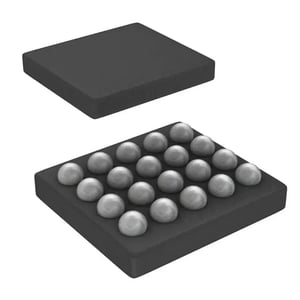

Image is for Reference Only
Manufacturer
Mfr. Part #
LM3633YFQR
Category
SKU
LM3633YFQR
Description
LED Driver IC 6 DC DC Regulator Step-Up (Boost), Switched Capacitor (Charge Pump) PWM 30mA 20-DSBGA
Quantity
Packaging
Reel
Specifications
| Applications | Backlight |
| Current - Output / Channel | 30mA |
| Dimming | PWM |
| Frequency | 500kHz, 1MHz |
| Internal Switch(s) | Yes |
| Mounting Type | Surface Mount |
| Number Of Outputs | 6 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | 20-DSBGA |
| Product Status | Active |
| Rohs Status | ROHS3 Compliant |
| Series | - |
| Standard Package | 3,000 |
| Topology | Step-Up (Boost), Switched Capacitor (Charge Pump) |
| Type | DC DC Regulator |
| Voltage - Output | 40V |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Supply (Min) | 2.7V |
| Datasheet |
