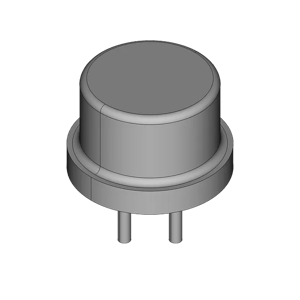

Part Image
Image is for Reference Only

LM236H-2.5/NOPB

Manufacturer
Texas Instruments
Mfr. Part #
LM236H-2.5/NOPB
Category
Voltage References
SKU
LM236H-2.5/NOPB
Description
Shunt Voltage Reference IC Fixed 2.49V ±2% TO-46-3
Stock Info
View All Voltage References by Texas Instruments

Specifications

Current - Cathode400µA
Current - Supply-
Mounting TypeThrough Hole
Noise - 0.1hz To 10hz-
Noise - 10hz To 10khz-
Operating Temperature-25°C ~ 85°C (TA)
Output Current10 mA
Output TypeFixed
PackageBox
Package / CaseTO-46-3
Reference TypeShunt
Series-
Standard Package1,000
Temperature Coefficient-
Tolerance±2%
Voltage - Input-
Voltage - Output (Min/fixed)2.49V
