DAC7741YL/250

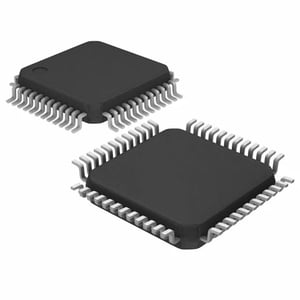

Image is for Reference Only
Manufacturer
Mfr. Part #
DAC7741YL/250
Category
SKU
DAC7741YL/250
Description
16 Bit Digital to Analog Converter 48-LQFP
Quantity
Specifications
| Architecture | R-2R |
| Data Interface | Parallel |
| Differential Output | No |
| Integral Nonlinearity (Inl) | ±1, ±1 (Max) |
| Mounting Type | Surface Mount |
| Number Of Bits | 16 |
| Number Of D/a Converters | 1 |
| Operating Temperature | 0°C ~ 70°C |
| Output Type | Voltage - Buffered |
| Package / Case | 48-LQFP |
| Reference Type | External, Internal |
| Settling Time | 5µs |
| Standard Package | 250 |
| Voltage - Supply, Analog | ±11.4V ~ 15.75V, -4.75V ~ -15.75V |
| Voltage - Supply, Digital | 5V |
| Datasheet |
