DAC70501ZDQFR

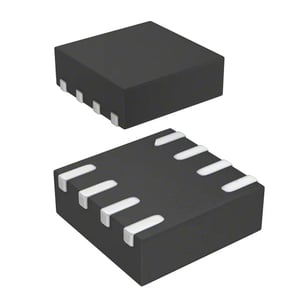

Image is for Reference Only
Manufacturer
Mfr. Part #
DAC70501ZDQFR
Category
SKU
DAC70501ZDQFR
Description
14 Bit Digital to Analog Converter 8-WFDFN
Quantity
Specifications
| Architecture | R-2R |
| Data Interface | I2C, SPI |
| Differential Output | No |
| Integral Nonlinearity (Inl) | ±1 (Max), ±1 (Max) |
| Mounting Type | Surface Mount |
| Number Of Bits | 14 |
| Number Of D/a Converters | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Output Type | Voltage - Buffered |
| Package | Tape & Reel (TR) |
| Package / Case | 8-WFDFN |
| Reach Svhc | REACH Unaffected |
| Reference Type | External, Internal |
| Series | - |
| Settling Time | 5µs(Typ) |
| Standard Package | 3,000 |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
