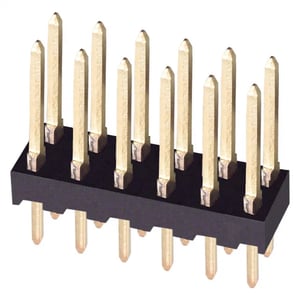

Image is for Reference Only
87227-6
Manufacturer
Mfr. Part #
87227-6
Category
SKU
87227-6
Description
Connector Header Through Hole 12 0.100" (2.54mm)
Stock Info
Available : 5721
Packaging
Bulk Pack
Std Package Qty
120
Specifications
| Applications | - |
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Mating | 0.318" (8.08mm) |
| Contact Length - Post | 0.125" (3.18mm) |
| Contact Material | Phosphor Bronze |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3A |
| Fastening Type | Push-Pull |
| Features | - |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Height | 0.090" (2.29mm) |
| Insulation Material | Thermoplastic |
| Mated Stacking Heights | - |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number Of Positions | 12 |
| Number Of Positions Loaded | All |
| Number Of Rows | 2 |
| Operating Temperature | -65°C ~ 105°C |
| Overall Contact Length | 0.533" (13.55mm) |
| Package | Bulk |
| Pitch - Mating | 0.100" (2.54mm) |
| Product Status | Active |
| Rohs Status | Not applicable |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Series | AMPMODU Mod II |
| Shrouding | Unshrouded |
| Standard Package | 120 |
| Style | Board to Board or Cable |
| Termination | Solder |
| Voltage Rating | - |
