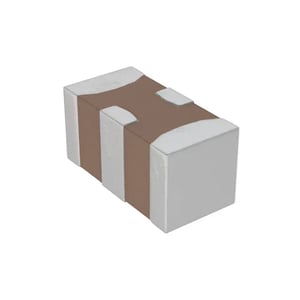

YFF18SC1H103MT0H0N
Image is for Reference Only
Manufacturer
Mfr. Part #
YFF18SC1H103MT0H0N
Category
SKU
YFF18SC1H103MT0H0N
Description
10nF Feed Through Capacitor 50V 1 A 80mOhm 0603 (1608 Metric), 4 PC Pad
Quantity
Est. Availability: 8712
Packaging
Reel
Std Package Qty
4000
View All Feed Through Capacitors by TDK
Estimated Availability: 8,712
Market supply for this part changes quickly, so stock, price and lead time are confirmed when we quote.
Request a Quote
100% Purchase Protection
Original Products | Secure Payments
Specifications
| Capacitance | 10nF |
| Current | 1 A |
| Dc Resistance (Dcr) (Max) | 80mOhm |
| Height (Max) | 0.028" (0.70mm) |
| Insertion Loss | 30dB @ 20MHz ~ 3GHz |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 0603 (1608 Metric), 4 PC Pad |
| Ratings | - |
| Rohs Status | - |
| Series | YFF-SC |
| Size / Dimension | 0.063" L x 0.032" W (1.60mm x 0.80mm) |
| Temperature Coefficient | - |
| Tolerance | ±20% |
| Voltage - Rated | 50V |
| Datasheet |
