YFF15SC1E222MT000N

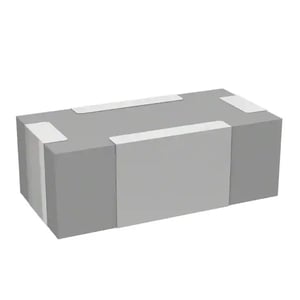

Image is for Reference Only
Manufacturer
Mfr. Part #
YFF15SC1E222MT000N
Category
SKU
YFF15SC1E222MT000N
Description
2200pF Feed Through Capacitor 25V 1 A 300mOhm 0402 (1005 Metric), 4 PC Pad
Quantity
Est. Availability: 24252
Packaging
Reel
Std Package Qty
10000
View All Feed Through Capacitors by TDK
Estimated Availability: 24,252
Market supply for this part changes quickly, so stock, price and lead time are confirmed when we quote.
Request a Quote
100% Purchase Protection
Original Products | Secure Payments
Specifications
| Capacitance | 2200pF |
| Current | 1 A |
| Dc Resistance (Dcr) (Max) | 300mOhm |
| Height (Max) | 0.014" (0.35mm) |
| Insertion Loss | 30dB @ 100MHz ~ 4GHz |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| Package | Tape & Reel (TR) |
| Package / Case | 0402 (1005 Metric), 4 PC Pad |
| Ratings | - |
| Rohs Status | ROHS3 Compliant |
| Series | YFF-SC |
| Size / Dimension | 0.039" L x 0.022" W (1.00mm x 0.55mm) |
| Standard Package | 10,000 |
| Temperature Coefficient | - |
| Tolerance | ±20% |
| Voltage - Rated | 25V |
| Datasheet |
