SI8233BD-D-IS3

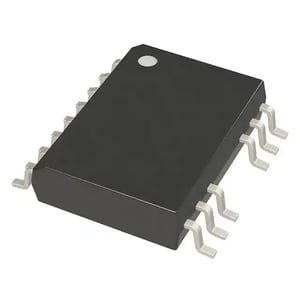

Image is for Reference Only
Manufacturer
Mfr. Part #
SI8233BD-D-IS3
Category
SKU
SI8233BD-D-IS3
Description
Gate Driver Capacitive Coupling 5000Vrms 2 14-SOIC
Quantity
Packaging
Tube
Specifications
| Approval Agency | CQC, CSA, UR, VDE |
| Common Mode Transient Immunity (Min) | 45kV/µs |
| Current - Output High, Low | 2A, 4A |
| Current - Peak Output | 4A |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Number Of Channels | 2 |
| Operating Temperature | -40°C ~ 125°C |
| Package | Tube |
| Package / Case | 14-SOIC |
| Product Status | Active |
| Propagation Delay Tplh / Tphl (Max) | 60ns, 60ns |
| Pulse Width Distortion (Max) | 5.6ns |
| Qualification | AEC-Q100 |
| Rise / Fall Time (Typ) | 12ns, 12ns |
| Rohs Status | ROHS3 Compliant |
| Standard Package | 46 |
| Technology | Capacitive Coupling |
| Voltage - Isolation | 5000Vrms |
| Voltage - Output Supply | 6.5V ~ 24V |
