RT6316BGQUF

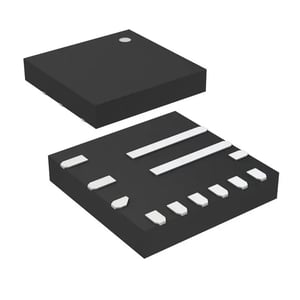

Image is for Reference Only
Manufacturer
Mfr. Part #
RT6316BGQUF
SKU
RT6316BGQUF
Description
PMIC - Voltage Regulators - Linear Switching 2 Output Step-Down (Buck) Synchronous (1), Linear (LDO) (1) 12-UFQFN
Quantity
Packaging
Reel
Specifications
| Frequency - Switching | 500kHz |
| Mounting Type | Surface Mount |
| Number Of Outputs | 2 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | 12-UFQFN |
| Product Status | Active |
| Rohs Status | ROHS3 Compliant |
| Series | - |
| Standard Package | 3,000 |
| Topology | Step-Down (Buck) Synchronous (1), Linear (LDO) (1) |
| Voltage - Supply | 4.5V ~ 23V |
| Voltage/current - Output 1 | Fixed, Fixed, 3.3V, 6A |
| Voltage/current - Output 2 | Fixed, Fixed, 3.3V, 100mA |
| W/led Driver | No |
| W/sequencer | No |
| W/supervisor | No |
| Datasheet |
