R5F1216AMSP#30

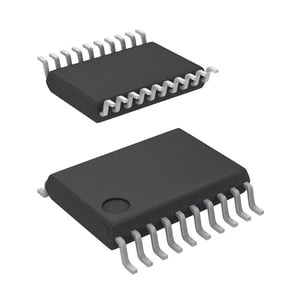

Image is for Reference Only
Manufacturer
Mfr. Part #
R5F1216AMSP#30
Category
SKU
R5F1216AMSP#30
Description
RL78 RL78/G16 Microcontroller IC 16-Bit 16MHz 16KB (16K x 8) FLASH 20-LSSOP
Quantity
Packaging
Tube
View All Embedded Microcontrollers by Renesas
Specifications
| Connectivity | CSI, I2C, SPI, UART/USART |
| Core Processor | RL78 |
| Core Size | 16-Bit |
| Data Converters | A/D 11x8/10b |
| Eeprom Size | 1K x 8 |
| Mounting Type | Surface Mount |
| Number Of I/o | 17 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | External, Internal |
| Package / Case | 20-LSSOP |
| Peripherals | Capacitive Touch, POR, PWM, Voltage Detect, WDT |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| Ram Size | 2K x 8 |
| Series | RL78/G16 |
| Speed | 16MHz |
| Voltage - Supply (Vcc/vdd) | 2.4V ~ 5.5V |
