R5F100EEANA#40

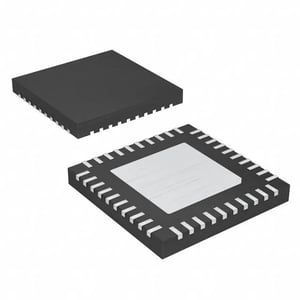

Image is for Reference Only
Manufacturer
Mfr. Part #
R5F100EEANA#40
Category
SKU
R5F100EEANA#40
Description
RL78 RL78/G13 Microcontroller IC 16-Bit 32MHz 64KB (64K x 8) FLASH 40-WFQFN EP
Quantity
View All Embedded Microcontrollers by Renesas
Specifications
| Connectivity | CSI, I²C, LINbus, UART/USART |
| Core Processor | RL78 |
| Core Size | 16-Bit |
| Data Converters | A/D 9x8/10b |
| Eeprom Size | 4K x 8 |
| Mounting Type | Surface Mount |
| Number Of I/o | 28 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Package | Tape & Reel (TR) |
| Package / Case | 40-WFQFN EP |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| Ram Size | 4K x 8 |
| Series | RL78/G13 |
| Speed | 32MHz |
| Standard Package | 2,500 |
| Voltage - Supply (Vcc/vdd) | 1.6V ~ 5.5V |
