PS2802-4-V-F3-A

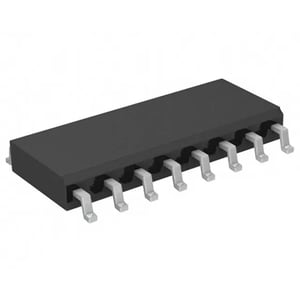

Image is for Reference Only
Manufacturer
Mfr. Part #
PS2802-4-V-F3-A
SKU
PS2802-4-V-F3-A
Description
Optoisolator Darlington Output 2500Vrms 4 16-SOIC
Quantity
Packaging
Reel
Specifications
| Current - Dc Forward (If) (Max) | 50 mA |
| Current - Output / Channel | 100mA |
| Current Transfer Ratio (Max) | - |
| Current Transfer Ratio (Min) | 200% @ 1mA |
| Input Type | DC |
| Mounting Type | Surface Mount |
| Number Of Channels | 4 |
| Operating Temperature | -55°C ~ 100°C |
| Output Type | Darlington |
| Package | Tape & Reel (TR) |
| Package / Case | 16-SOIC |
| Product Status | Active |
| Rise / Fall Time (Typ) | 200µs, 200µs |
| Rohs Status | ROHS3 Compliant |
| Series | - |
| Standard Package | 2,500 |
| Turn On / Turn Off Time (Typ) | - |
| Vce Saturation (Max) | 1V |
| Voltage - Forward (Vf) (Typ) | 1.1V |
| Voltage - Isolation | 2500Vrms |
| Voltage - Output (Max) | 40V |
| Datasheet |
