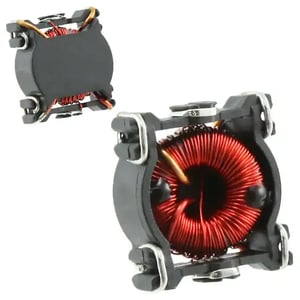

Part Image
Image is for Reference Only

PE-68210NLT

Manufacturer
Pulse
Mfr. Part #
PE-68210NLT
Category
Current Sense Transformers
SKU
PE-68210NLT
Description
1:1:50 Current Sense Transformer 50kHz ~ 500kHz 1.15mOhm Primary, 380mOhm Secondary 3.8mH Surface Mount
Stock Info
Available : 854
Packaging
Reel
Std Package Qty
300
View All Current Sense Transformers by Pulse
Truspilot
Trustpilot Stars  4.9
Available Quantity : 854
100% Purchase Protection
Original Products | Secure Payments

Specifications

Current Ratio-
Dc Resistance (Dcr)1.15mOhm Primary, 380mOhm Secondary
Et (Volt-time)-
Frequency Range50kHz ~ 500kHz
Height - Seated (Max)0.280" (7.11mm)
Inductance3.8mH
Mounting TypeSurface Mount
PackageTape & Reel (TR)
Product StatusActive
Ratings-
Rohs StatusRoHS Compliant
SeriesPE-68XXXNL
Size / Dimension0.495" L x 0.490" W (12.57mm x 12.45mm)
Standard Package300
Termination Style-
Turns Ratio - Primary:secondary1:1:50
TypeInvasive
Weight-
Datasheet

pdfPE-68210NLT
