2SD315AI

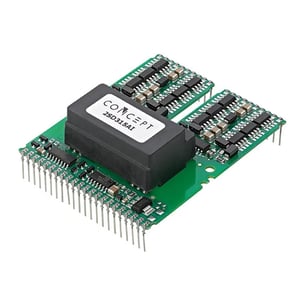

Image is for Reference Only
Manufacturer
Mfr. Part #
2SD315AI
Category
SKU
2SD315AI
Description
Half-Bridge Gate Driver IC - 44-DIP Module, 42L
Quantity
Packaging
Tray
View All Gate Drivers by Power Integrations
Specifications
| Channel Type | - |
| Driven Configuration | Half-Bridge |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET |
| Input Type | - |
| Logic Voltage - Vil, Vih | - |
| Mounting Type | Through Hole |
| Number Of Drivers | 2 |
| Operating Temperature | -40°C ~ 85°C |
| Package | Tray |
| Package / Case | 44-DIP Module, 42L |
| Product Status | Active |
| Rise / Fall Time (Typ) | 160ns, 130ns |
| Rohs Status | RoHS non-compliant |
| Series | SCALE™-1 |
| Standard Package | 12 |
| Voltage - Supply | - |
| Datasheet |
