EFC3J018NUZTDG

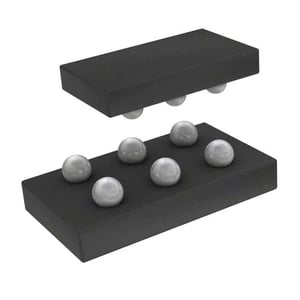

Image is for Reference Only
Manufacturer
Mfr. Part #
EFC3J018NUZTDG
SKU
EFC3J018NUZTDG
Description
20V 23A (Ta) Surface Mount 6-WLCSP
Quantity
Packaging
Reel
Specifications
| Configuration | 2 N-Channel (Dual) Common Drain |
| Current - Continuous Drain (Id) @ 25°c | 23A (Ta) |
| Drain To Source Voltage (Vdss) | 20V |
| Fet Feature | Logic Level Gate, 2.5V Drive |
| Gate Charge (Qg) (Max) @ Vgs | 75nC @ 4.5V |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Package / Case | 6-WLCSP |
| Power - Max | 2.5W (Ta) |
| Rds On (Max) @ Id, Vgs | 4.7mOhm @ 5A, 4.5V |
| Technology | MOSFET (Metal Oxide) |
| Vgs(th) (Max) @ Id | 1.3V @ 1mA |
