S4070WTP

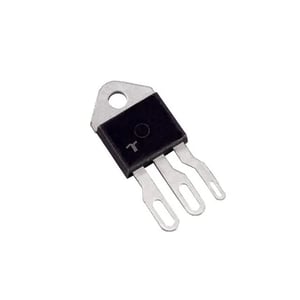

Image is for Reference Only
Manufacturer
Mfr. Part #
S4070WTP
Category
SKU
S4070WTP
Description
SCR 400 V 70 A Standard Recovery Through Hole TO-218X-3
Quantity
Packaging
Tube
View All SCRs and SCR Modules by Littelfuse
Specifications
| Current - Gate Trigger (Igt) (Max) | 50 mA |
| Current - Hold (Ih) (Max) | 80 mA |
| Current - Non Rep. Surge 50, 60hz (Itsm) | 800A, 950A |
| Current - Off State (Max) | 20 µA |
| Current - On State (It (Av)) (Max) | 45 A |
| Current - On State (It (Rms)) (Max) | 70 A |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 125°C |
| Package | Tube |
| Package / Case | TO-218X-3 |
| Rohs Status | ROHS3 Compliant |
| Scr Type | Standard Recovery |
| Series | - |
| Standard Package | 250 |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Voltage - Off State | 400 V |
| Voltage - On State (Vtm) (Max) | 1.8 V |
