CLA80E1200HF

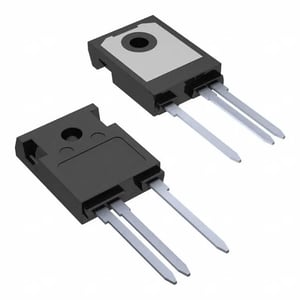

Image is for Reference Only
Manufacturer
Mfr. Part #
CLA80E1200HF
Category
SKU
CLA80E1200HF
Description
SCR 1.2 kV 126 A Standard Recovery Through Hole TO-247-3 Variant
Quantity
Packaging
Tube
Specifications
| Current - Gate Trigger (Igt) (Max) | 38 mA |
| Current - Hold (Ih) (Max) | 100mA |
| Current - Non Rep. Surge 50, 60hz (Itsm) | 900A, 970A |
| Current - Off State (Max) | 50 µA |
| Current - On State (It (Av)) (Max) | 80 A |
| Current - On State (It (Rms)) (Max) | 126 A |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 150°C |
| Package / Case | TO-247-3 Variant |
| Scr Type | Standard Recovery |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Voltage - Off State | 1.2 kV |
| Voltage - On State (Vtm) (Max) | 1.77 V |
