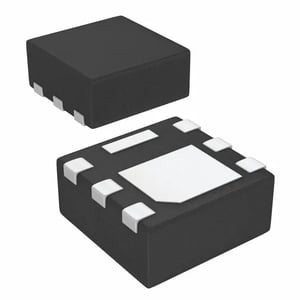

Image is for Reference Only
ISK018NE1LM7ATSA1
Manufacturer
Mfr. Part #
ISK018NE1LM7ATSA1
SKU
ISK018NE1LM7ATSA1
Description
N-Channel 15V 30A (Ta), 129A (Tc) 2.1W (Ta), 39W (Tc) Surface Mount 6-PowerVDFN
Stock Info
Packaging
Reel
Specifications
| Current - Continuous Drain (Id) @ 25°c | 30A (Ta), 129A (Tc) |
| Drain To Source Voltage (Vdss) | 15V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 7V |
| Fet Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 13.6 nC @ 7 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1600 pF @ 7.5 V |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package / Case | 6-PowerVDFN |
| Power Dissipation (Max) | 2.1W (Ta), 39W (Tc) |
| Rds On (Max) @ Id, Vgs | 1.8mOhm @ 20A, 7V |
| Series | OptiMOS™ 7 |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ±7V |
| Vgs(th) (Max) @ Id | 2V @ 106µA |
