RTP090HVEAA

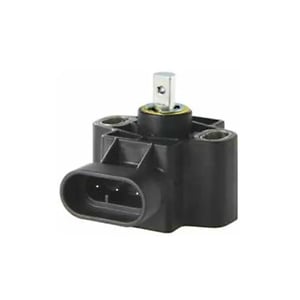

Image is for Reference Only
Manufacturer
Mfr. Part #
RTP090HVEAA
SKU
RTP090HVEAA
Description
Hall Effect Sensor Rotary Position External Magnet, Included Connector
Quantity
Packaging
Bulk Pack
Specifications
| Actuator Type | External Magnet, Included |
| For Measuring | Rotary Position |
| Linear Range | - |
| Linearity | ±1% |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C |
| Output | Analog Voltage |
| Output Signal | Clockwise Increase |
| Package | Bulk |
| Package / Case | Box with Connector |
| Product Status | Active |
| Resistance Tolerance | - |
| Rohs Status | RoHS Compliant |
| Rotation Angle - Electrical, Mechanical | 90° (±45°) |
| Series | RTP |
| Standard Package | 50 |
| Technology | Hall Effect |
| Termination Style | Connector |
| Voltage - Supply | 10V ~ 30V |
| Datasheet |
