EFB0612HA

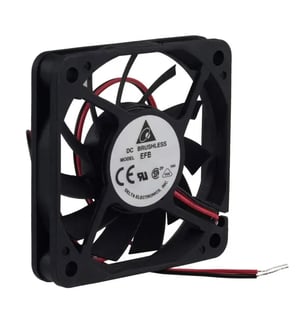

Image is for Reference Only
Manufacturer
Mfr. Part #
EFB0612HA
Category
SKU
EFB0612HA
Description
Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 18.0 CFM (0.504m³/min) 2 Wire Leads
Quantity
Est. Availability: 6501
Std Package Qty
315
View All DC Fans by Delta Elec.
Estimated Availability: 6,501
Market supply for this part changes quickly, so stock, price and lead time are confirmed when we quote.
Request a Quote
100% Purchase Protection
Original Products | Secure Payments
Specifications
| Air Flow | 18.0 CFM (0.504m³/min) |
| Approval Agency | CE, CSA, UL, VDE |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.120A |
| Fan Type | Tubeaxial |
| Features | - |
| Ingress Protection | - |
| Lifetime @ Temp. | - |
| Manufacturer Part Number | EFB0612HA |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 33.0 dB(A) |
| Operating Temperature | - |
| Power (Watts) | 1.44W |
| Rohs Status | ROHS3 Compliant |
| Rpm | 4200 RPM |
| Series | EFB |
| Size / Dimension | Square - 60mm L x 60mm H |
| Standard Package | 315 |
| Static Pressure | 0.132 in H2O (32.9 Pa) |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12VDC |
| Voltage Range | 7 ~ 13.8VDC |
| Weight | 0.062 lb (28.12 g) |
| Width | 10.00mm |
| Datasheet |
