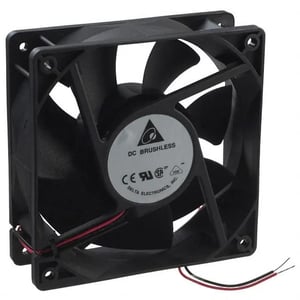

Part Image
Image is for Reference Only

AFB1212SHE

Manufacturer
Delta Elec.
Mfr. Part #
AFB1212SHE
Category
DC Fans
SKU
AFB1212SHE
Description
Fan Tubeaxial 12VDC Square - 120mm L x 120mm H Ball 151.9 CFM (4.25m³/min) 2 Wire Leads
Stock Info
Available : 5014
Packaging
Tray
Std Package Qty
36
View All DC Fans by Delta Elec.
Truspilot
Trustpilot Stars  4.9
Available Quantity : 5014
100% Purchase Protection
Original Products | Secure Payments

Specifications

Air Flow151.9 CFM (4.25m³/min)
Approval AgencyCE, CSA, UL, VDE
Bearing TypeBall
Current Rating (Amps)1.05A
Fan TypeTubeaxial
FeaturesLocked Rotor Protection
Ingress Protection-
Lifetime @ Temp.70000 Hrs @ 40°C
Material - BladePlastic
Material - FramePlastic
Noise53.0dB(A)
Operating Temperature14 ~ 140°F (-10 ~ 60°C)
PackageTray
Power (Watts)12.6W
Rohs StatusROHS3 Compliant
Rpm3700 RPM
SeriesAFB
Size / DimensionSquare - 120mm L x 120mm H
Standard Package36
Static Pressure0.571 in H2O (142.2 Pa)
Termination2 Wire Leads
Voltage - Rated12VDC
Voltage Range4 ~ 13.2VDC
Weight0.564 lb (255.83 g)
Width38.00mm
