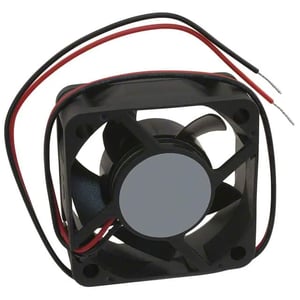

Part Image
Image is for Reference Only

AFB0512HHD

Manufacturer
Delta Elec.
Mfr. Part #
AFB0512HHD
Category
DC Fans
SKU
AFB0512HHD
Description
Fan Tubeaxial 12VDC Square - 50mm L x 50mm H Ball 18.3 CFM (0.512m³/min) 2 Wire Leads
Stock Info
Available : 5493
Std Package Qty
252
View All DC Fans by Delta Elec.
Truspilot
Trustpilot Stars  4.9
Available Quantity : 5493
100% Purchase Protection
Original Products | Secure Payments

Specifications

Air Flow18.3 CFM (0.512m³/min)
Approval AgencyCE, CSA, UL, VDE
Bearing TypeBall
Current Rating (Amps)0.140A
Fan TypeTubeaxial
Features-
Ingress Protection-
Lifetime @ Temp.70000 Hrs @ 40°C
Manufacturer Part NumberAFB0512HHD
Material - BladePlastic
Material - FramePlastic
Noise37.0dB(A)
Operating Temperature14 ~ 158°F (-10 ~ 70°C)
Power (Watts)1.68W
Rohs StatusROHS3 Compliant
Rpm6400 RPM
SeriesAFB
Size / DimensionSquare - 50mm L x 50mm H
Standard Package252
Static Pressure0.254 in H2O (63.3 Pa)
Termination2 Wire Leads
Voltage - Rated12VDC
Voltage Range7 ~ 13.8VDC
Weight0.084 lb (38.1 g)
Width20.00mm
Datasheet

pdfAFB0512HHD
