AMS22U5A1BHBRL334

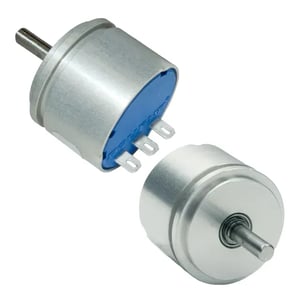

Image is for Reference Only
Manufacturer
Mfr. Part #
AMS22U5A1BHBRL334
SKU
AMS22U5A1BHBRL334
Description
Hall Effect Sensor Rotary Position Round Shaft Solder Lug
Quantity
Packaging
Tray
Specifications
| Actuator Type | Round Shaft |
| For Measuring | Rotary Position |
| Linear Range | - |
| Linearity | ±0.5% |
| Mounting Type | Panel Mount |
| Operating Temperature | -40°C ~ 125°C |
| Output | Analog Voltage |
| Output Signal | Clockwise Increase |
| Package | Tray |
| Package / Case | Module, Round Shaft |
| Resistance Tolerance | - |
| Rohs Status | ROHS3 Compliant |
| Rotation Angle - Electrical, Mechanical | 10° ~ 340°, Continuous |
| Series | AMS22U |
| Standard Package | 25 |
| Technology | Hall Effect |
| Termination Style | Solder Lug |
| Voltage - Supply | 5V |
