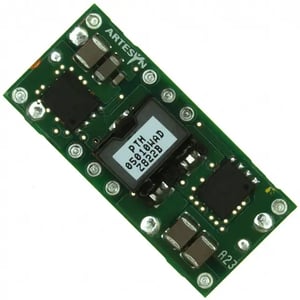

Part Image
Image is for Reference Only

PTH05010WAD

Manufacturer
Artesyn Embedded Power
Mfr. Part #
PTH05010WAD
Category
DC/DC Converters
SKU
PTH05010WAD
Description
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 3.6V 15A 4.5V 5.5V Input
Stock Info
Packaging
Tray
Std Package Qty
40
View All DC/DC Converters by Artesyn Embedded Power
Truspilot
Trustpilot Stars  4.9
Available Quantity : 4096
100% Purchase Protection
Original Products | Secure Payments

Specifications

ApplicationsITE (Commercial)
Current - Output (Max)15A
Efficiency95%
FeaturesRemote On/Off, OTP, SCP, UVLO
Mounting TypeThrough Hole
Number Of Outputs1
Operating Temperature-40°C ~ 85°C
PackageTray
Package / Case10-DIP Module
Power (Watts)54W
Rohs StatusRoHS Compliant
SeriesPTH05010W (54W)
Size / Dimension1.37" L x 0.62" W x 0.35" H (34.8mm x 15.7mm x 8.9mm)
Standard Package40
TypeNon-Isolated PoL Module
Voltage - Input (Max)5.5V
Voltage - Input (Min)4.5V
Voltage - Output 10.8 ~ 3.6V
Voltage - Output 2-
Voltage - Output 3-
Datasheet

pdfPTH05010WAD
