LT3507HUHF#PBF

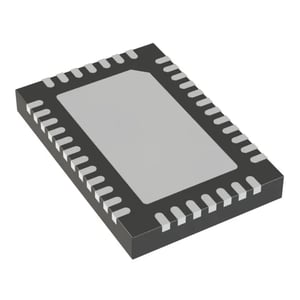

Image is for Reference Only
Manufacturer
Mfr. Part #
LT3507HUHF#PBF
SKU
LT3507HUHF#PBF
Description
PMIC - Voltage Regulators - Linear Switching 4 Output Step-Down (Buck) (1), Linear (LDO) (1) 38-WFQFN EP
Quantity
Packaging
Tube
Specifications
| Frequency - Switching | 900kHz ~ 1.1MHz |
| Mounting Type | Surface Mount |
| Number Of Outputs | 4 |
| Operating Temperature | -40°C ~ 150°C |
| Package | Tube |
| Package / Case | 38-WFQFN EP |
| Product Status | Active |
| Rohs Status | ROHS3 Compliant |
| Series | - |
| Standard Package | 52 |
| Topology | Step-Down (Buck) (1), Linear (LDO) (1) |
| Voltage - Supply | 4V ~ 36V |
| Voltage/current - Output 1 | 0.8V ~ 32.4V, 2.4A |
| Voltage/current - Output 2 | 0.8V ~ 32.4V, 1.5A |
| Voltage/current - Output 3 | 0.8V ~ 32.4V, 1.5A |
| W/led Driver | No |
| W/sequencer | Yes |
| W/supervisor | No |
| Datasheet |
