ADP5600ACPZ-R7

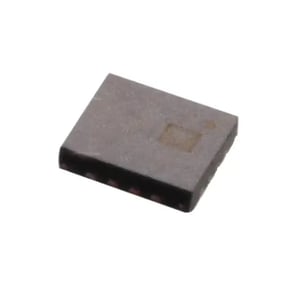

Image is for Reference Only
Manufacturer
Mfr. Part #
ADP5600ACPZ-R7
SKU
ADP5600ACPZ-R7
Description
PMIC - Voltage Regulators - Linear Switching 2 Output Charge Pump (1), Linear (LDO) (1) 16-WQFN EP CSP
Quantity
Packaging
Reel
Specifications
| Frequency - Switching | 100kHz ~ 1MHz |
| Mounting Type | Surface Mount |
| Number Of Outputs | 2 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | 16-WQFN EP CSP |
| Rohs Status | ROHS3 Compliant |
| Series | - |
| Standard Package | 1,500 |
| Topology | Charge Pump (1), Linear (LDO) (1) |
| Voltage - Supply | 2.7V ~ 16V |
| Voltage/current - Output 1 | Fixed, Adjustable |
| Voltage/current - Output 2 | Fixed, Adjustable, -505mV to -16.5V, 100mA |
| Voltage/current - Output 3 | Fixed, Adjustable |
| W/led Driver | No |
| W/sequencer | No |
| W/supervisor | No |
