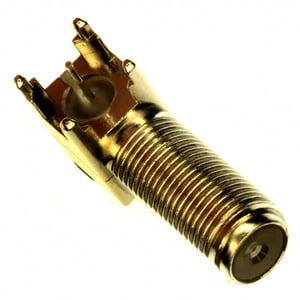

Image is for Reference Only
5-1634540-1
Manufacturer
Mfr. Part #
5-1634540-1
Category
SKU
5-1634540-1
Description
F Type Connector Jack, Female Socket 75 Ohm Panel Mount, Through Hole, Right Angle
Stock Info
Available : 9827
Packaging
Bulk Pack
Std Package Qty
50
Specifications
| Body Finish | Nickel |
| Body Material | Zinc Alloy |
| Cable Group | - |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Tin |
| Connector Style | F Type |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polymethylpentene (PMP) |
| Fastening Type | Threaded |
| Features | - |
| Frequency - Max | 1 GHz |
| Housing Color | Silver |
| Impedance | 75 Ohms |
| Includes | - |
| Ingress Protection | - |
| Insertion Loss | - |
| Mating Cycles | - |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Number Of Ports | 1 |
| Operating Temperature | -65°C ~ 85°C |
| Package | Bulk |
| Product Status | Obsolete |
| Rohs Status | RoHS Compliant |
| Series | ZDC, Greenpar |
| Shield Termination | Solder |
| Standard Package | 50 |
| Voltage Rating | 500 V |
| Datasheet |
