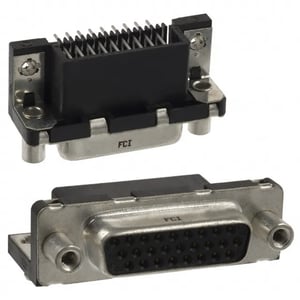

Image is for Reference Only
ICD26S13E4GV00LF
Manufacturer
Mfr. Part #
ICD26S13E4GV00LF
Category
SKU
ICD26S13E4GV00LF
Description
D-Sub Connectors, Through Hole, Right Angle, Receptacle, Female Sockets 26
Stock Info
Available : 3774
Packaging
Tray
Std Package Qty
100
View All D-Sub Connectors by Amphenol
Specifications
| Backset Spacing | 0.350" (8.89mm) |
| Color | Black |
| Connector Style | D-Sub, High Density |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | - |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3A |
| Dielectric Material | Polyester |
| Features | Board Lock, Mounting Brackets |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Ingress Protection | - |
| Manufacturer Part Number | ICD26S13E4GV00LF |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number Of Positions | 26 |
| Number Of Rows | 3 |
| Operating Temperature | -55°C ~ 125°C |
| Rohs Status | RoHS Compliant |
| Series | ICD |
| Shell Material, Finish | Steel, Tin Plated |
| Shell Size, Connector Layout | 2 (DA, A) High Density |
| Standard Package | 100 |
| Termination | Solder |
| Voltage Rating | 300V |
| Wire Gauge | - |
