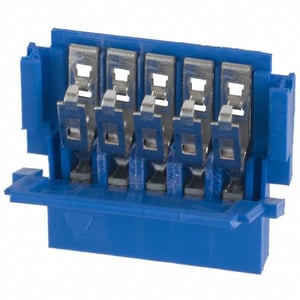

Image is for Reference Only
65801-005LF
Manufacturer
Mfr. Part #
65801-005LF
Category
SKU
65801-005LF
Description
FFC, FPC (Flat Flexible) connector, 0.100" (2.54mm) pitch, 5 POS
Stock Info
Available : 6921
Packaging
Bag
Std Package Qty
72
View All FFC, FPC Connector by Amphenol
Specifications
| Actuator Color | - |
| Actuator Material | - |
| Cable End Type | - |
| Connector/contact Type | Receptacle |
| Contact Finish | Tin |
| Contact Finish Thickness | 100.0µin (2.54µm) |
| Contact Material | Copper Nickel Alloy |
| Current Rating | 2A |
| Features | - |
| Ffc, Fcb Thickness | 0.33mm |
| Flat Flex Type | FFC, FPC |
| Height Above Board | - |
| Housing Color | Blue |
| Housing Material | Thermoplastic |
| Lead Free Status / Rohs Status | Lead free / RoHS Compliant |
| Locking Feature | - |
| Manufacturer Part Number | 65801-005LF |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 100 |
| Mounting Type | Free Hanging (In-Line) |
| Number Of Positions | 5 |
| Operating Temperature | -65°C ~ 105°C |
| Pitch | 0.100" (2.54mm) |
| Series | Clincher |
| Standard Package | 72 |
| Termination | IDC |
| Voltage Rating | 500V |
